15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC

Name: 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC
Brand: VIC-TECH
Price: 3.60 USD

Quality 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC wholesale

Model Number : SM15-845G

Brand Name : VIC-TECH

Place of Origin : Jiangsu, China

Certification : RoHS

MOQ : 2

Price : $3.60-7

Motor diameter : 15mm

Phase : 2

Wires : 4

Current per phase : 200mA

Resistance : 15Ω±7%

Transmission ratio : 100:1

Gearbox size : 10*24*9 (v)

Reduction ratio : 2:1,5:1,10:1,15:1,20:1,30:1,36:1,50:1,63:1,67:1,89:1,100:1,110:1,120:1,150:1,172:1,210:1,250:1,275:1,298:1,380:1,420:1,500:1,600:1,1000:1

Step angle : 18°

Voltage : 5 VDC

Motor type : Permanent Magnet

Basic step angle : 18 degrees

Steps per turn : 20

Rotation resolution : 0.05~6 degrees

Gearbox material : Precision metal

Contact Now

Product Description

15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC

The use of diameter 15mm micro stepper motor and 10*12 precision metal reduction gearbox combination, the reduction
ratio can be customized according to customer needs.

Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor
rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements.
Precise control of the rotating position of the field.

1:5 1:3 1:20 1:10 1:380 1:30 1:50 1:63 1:150 1:298 and so on, the customer can according to different use torque speed
requirements to match the speed ratio, at the same time.

Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
Our products can be customized, if you are interested, you can write to me.

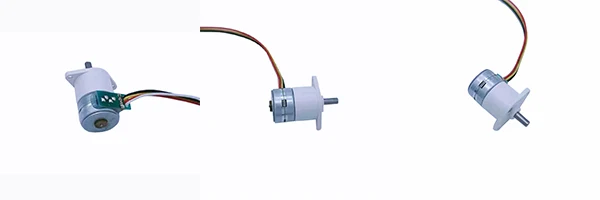

Product: picture:

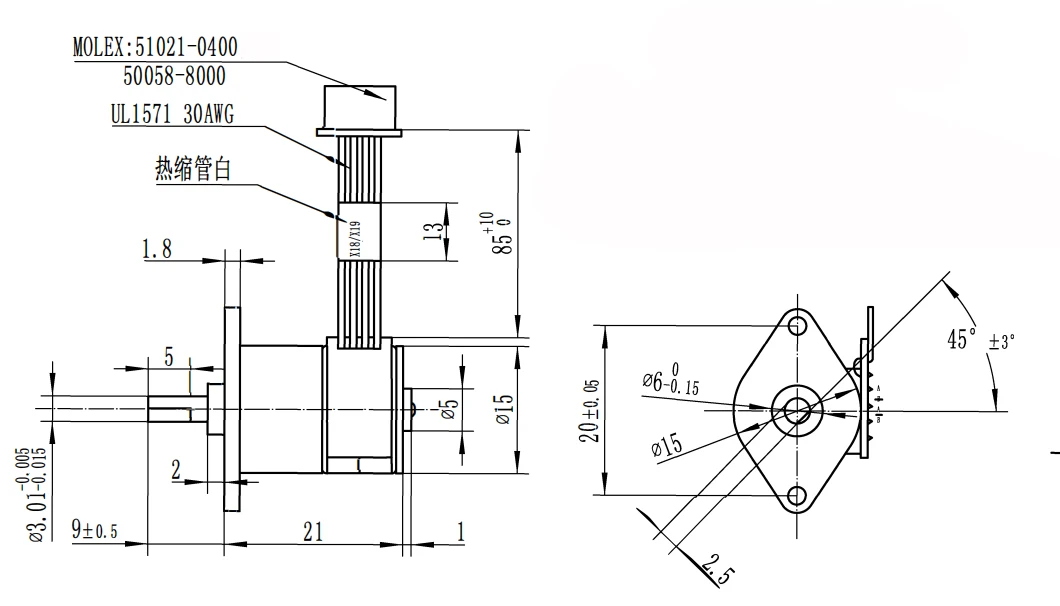

Design Layout (Unit:mm)

Specification

Motor diameter	15mm
resistance	15Ω±7%
Transmission ratio	100:1
Gearbox size	10249 (v)
Reduction ratio	2:1,5:1,10:1,15:1,20:1,30:1,36:1,50:1,63:1,67:1,89:1, 100:1,110:1,120:1,150:1,172:1,210:1,250:1,275:1,298:1, 380:1,420:1,500:1,600:1,1000:1
Step angle	18°
Voltage	5 VDC

Packing & Delivery

Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
