15mm Diameter Linear Stepper Motor with 1kg Thrust and 0.02mm Displacement Resolution for Precision Control

Name: 15mm Diameter Linear Stepper Motor with 1kg Thrust and 002mm Displacement Resolution for Precision Control
Brand: VIC-TECH
Price: 6.31 USD

Quality 15mm Diameter Linear Stepper Motor with 1kg Thrust and 0.02mm Displacement Resolution for Precision Control wholesale

Model Number : SM15-80L-T

Brand Name : VIC-TECH

Place of Origin : Jiangsu, China

Certification : rohs

MOQ : 1

Price : $6.31-15

Phase : 2

Current per Phase : 385mA

Motor Diameter : 15mm

Rated Voltage : 6 V DC

Coil Resistance : 15±10% ohm/PHASE(20℃)

Step Angle : 18°/Step

Excitation Method : 2 Phases Drive

Drive Mode : Bipolar Drive

Pull-out Thrust : More Than 230 g AT 700 pps

Max Response Frequency : More Than 1200 PPS

Max Starting Frequency : More Than 900 PPS

Insulation Class : CLASS E FOR COILS

Insulation Strength : 100 V AC FOR ONE SECOND

Insulation Resistance : 50MΩ DC 500V

Operating Temperature Range : -0~+55℃

Contact Now

Product Description

15mm Diameter Linear Stepper Motor with 1kg Thrust and 0.02mm Displacement Resolution for Precision Control

SM15-80L-TL is a precision screw motor. The pitch between the output shaft and the screw is 0.4mm. The rotation of the screw and the screw supports the screw to generate thrust. The basic step angle of the motor is 18 degrees, the motor runs 20 steps per week, and the displacement resolution can reach 0.02mm, achieving the purpose of precise control. The actuator adopts the subdivision drive mode to meet the requirements. Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us!

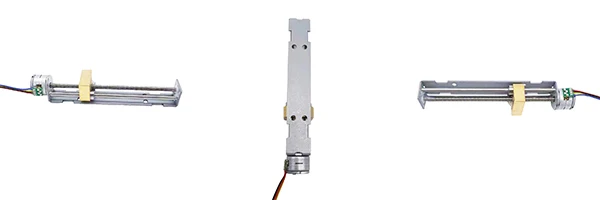

Product: picture:

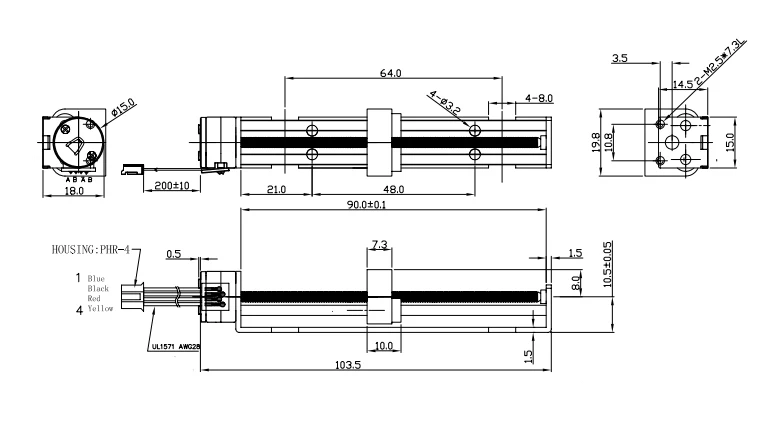

Design Layout (Unit:mm)

Specification

Model No.	SM15-80L-T
Motor diameter	15mm
Rated Voltage	6 V DC
Coil Resistance	15±10% ohm/PHASE(20℃)
Current Per Phase	400 mA/Phase(1000pps)
No.Of Phases	2 Phases
Step Angle	18°/Step
Excitation Method	2 Phases Drive
Drive Mode	Bipolar Drive
Pull-out Thrust	More Than 230 g AT 700 pps
Max Response Frequency	More Than 1200 PPS
Max Staring Frequency	More Than 900 PPS
Insulation Class	CLASS E FOR COILS
Insulation Strength	100 V AC FOR ONE SECOND
Insulation Resistance	50MΩ DC 500V
Operating Temperature Range	-0~+55℃
Motor surface temperature	80℃ or less

Packing & Delivery

Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
