High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments

Name: High Precision 4wire 20mm Linear Stepper Motor with 15 kg Thrust for Precision Instruments
Brand: VIC-TECH
Price: 6.65 USD

Quality High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments wholesale

Model Number : SM20-21L-T

Brand Name : VIC-TECH

Place of Origin : Jiangsu, China

Certification : RoHS

MOQ : 2

Price : $6.65-18

Motor diameter : 20mm

Rated voltage : 12 V DC

No. of phases : 2 phases

Step angle : 18°/Step

Current Per Phase : 770mA/Phase

Coil Resistance : 15.6±7% Ohm/Phase

Excitation Method : 2 Phase Excitation

Drive Mode : 2-2 Bipolar Drive

Pull-Out Thrust : More Than 1200gf-cm AT 700 PPS

Max Response Frequency : More Than 1300 PPS

Max Starting frequency : More Than 1000 PPS

Insulation Class : Class E For Coils

Insulation Strength : 50MΩ DC 500 V

Operating Temperature Range : -15~+55℃

Maximum thrust : 1.5 kg

Contact Now

Product Description

High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments

This product is a 20mm diameter linear stepper motor, which includes a screw rod and a slider. The maximum thrust can reach 1.5 kg, The slider can move linearly. The action of the motor is completely controlled by the driver. This product can be used with precision instruments or electronic products. Our products can be customized, if you are interested, you can write to me

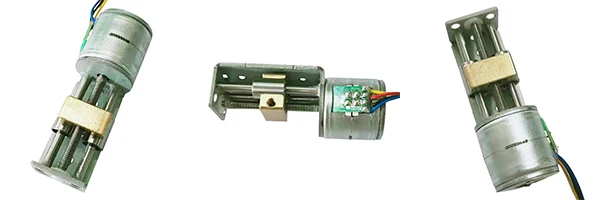

Product: picture:

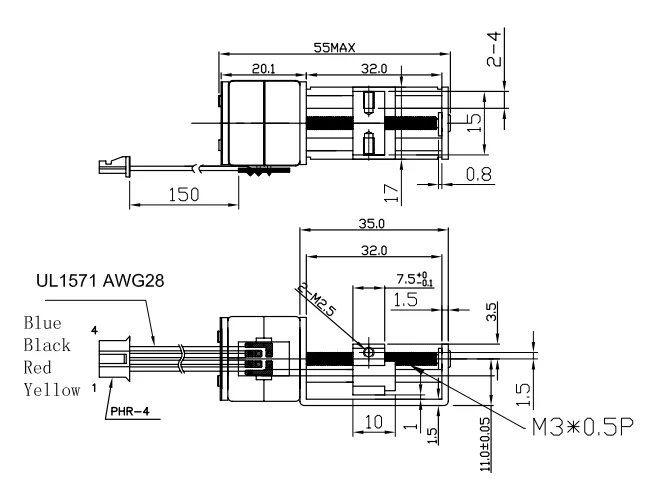

Design Layout (Unit:mm)

Specification

Model No.	SM20-21L-T
Motor diameter	20mm
Rated voltage	12 V DC
No. of phases	2 phases
Step angle	18°/Step
Current Per Phase	770mA/Phase
Coil Resistance	15.6±7% Ohm/Phase
Excitation Method	2 Phase Excitation
Drive Mode	2-2 Bipolar Drive
Pull-Out Thrust	More Than 1200gf-cm AT 700 PPS
Max Response Frequency	More Than 1300 PPS
Max Starting frequency	More Than 1000 PPS
Insulation Class	Class E For Coils
Insulation Strength	50MΩ DC 500 V
Operating Temperature Range	-15~+55℃

Packing & Delivery

Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Company Profile

Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers. We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(35.00%),North America(25.00%),Northern Europe(20.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
stepper motor,linear motor,geared motor,micro motor,BLDC motor

4. why should you buy from us not from other suppliers?
Vic-Tech Motor has been specializing in producing micro motors since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.We provide customers with design and development custom services.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
